Mold change automation for injection molding machine: reducing manual labor

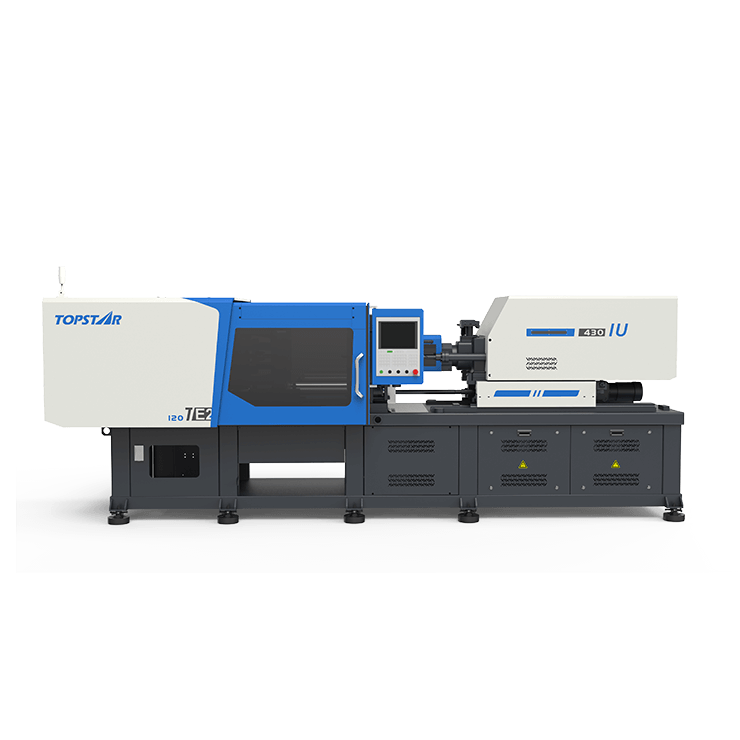

Injection molding machines are large machines that produce a variety of plastic parts, enabling fast and stable production. However, one of the most labor-intensive aspects of operating an injection molding machine is changing molds between production batches. Traditionally, technicians have to disassemble the heavy steel mold halves, reposition them on new fixtures, reconnect hydraulic and electrical lines, and manually confirm alignment. This manual operation not only requires strong physical strength and technical skills but also causes considerable downtime. With tighter production schedules and increased product varieties, mold change time has a direct impact on output, overall equipment effectiveness, and labor costs. Therefore, more and more manufacturers are seeking mold change automation solutions for their injection molding machines to reduce manual labor, expedite changeovers, and enhance workplace safety.
Benefits and ROI of Mold Change Automation for Injection Molding Machine
Implementing mold change automation on injection molding machines can immediately bring advantages in production efficiency and cost management. First, the rapid mold change system significantly reduces downtime, and the operation that previously took operators 45 minutes to complete can now be completed in just 10 minutes. In addition, these automated systems ensure consistent mold alignment and clamping force, thereby reducing the need for repeated adjustments that often lead to scrap or quality defects. Additionally, automated mold-changing solutions minimize the risk of back injuries, pinch points, and dropped molds, which pose safety hazards in manual operations. As a result, companies can reduce lost time in accidents and lower workers’ compensation claims. From an ROI perspective, manufacturers can typically recover their investment in mold-changing automation for injection molding machines within 12 to 18 months due to increased production, lower labor costs, and reduced waste.
Types and technologies of quick mold-changing systems for injection molding machine
A variety of innovative quick mold-changing technologies have emerged to support the automation of injection molding machines in various production environments. One standard solution utilizes a dedicated docking station with a hydraulic platen, which enables the two halves of the mold to slide in and out on integrated rails. The operator pushes a button to release the hydraulic clamps, disengaging the old mold. The system then automatically retracts the mold to a staging area for inspection while the new mold is moved into place. Another method is to use a magnetic coupling, where a powerful electromagnet embedded in the machine’s platen securely holds the mold in place.
By turning off the magnets, technicians can quickly slide out or lift the mold and reattach the magnets to the new mold, eliminating the need for manual bolts or clamping levers. In more advanced setups, an overhead, automated crane or robotic arm guides the mold on a fixed track. It interacts with the injection molding machine platen to complete the transfer without human intervention.
Injection Molding Machine Integrated with Injection Molding Robots for Mold Changeover
As robotics technology advances, many manufacturers have turned to injection molding robots to streamline further the injection molding machine mold change process, which involves changing molds in injection molding machines. Robotic mold transfer systems typically consist of a 3-axis industrial robot mounted on linear guides. Once the mold is in place, an integrated torque drive tightens the clamping bolts to machine specifications without operator input. Injection molding robots further enhance the flexibility of robotic cells that work safely alongside humans. During mold changes, injection molding robots can collaborate with technicians to complete heavy lifting while human operators make fine adjustments, change tools, or make connections. Additionally, the force-sensing capabilities of injection molding robots ensure that if a technician accidentally enters the working range, the collaborative robot will slow down or stop, thereby preventing accidents.
Reduced Physical Labor Risks
When evaluating injection molding machine operations, safety and ergonomic issues are top priorities. Manually handling molds puts significant strain on operators’ backs, shoulders, and wrists, increasing the likelihood of musculoskeletal injuries over time. Additionally, the risk of crushed fingers or dropped molds can have catastrophic consequences. Many of these hazards disappear when manufacturers introduce mold-changing automation. Hydraulic quick-change systems eliminate the need for manual loosening of numerous bolts, with robotic arms performing much of the lifting. As a result, the technician’s role shifts from exerting physical force to overseeing the automated process, performing visual inspections, programming parameter changes, and confirming safety interlocks.
This shift not only enhances employee happiness but also improves morale, as workers spend more time on skilled tasks rather than repetitive, physically demanding labor. Additionally, automated mold-changing systems are equipped with safety features that ensure no operator enters the danger zone during mold changes, further reinforcing a safer production environment.
Implementation Considerations and Best Practices
Integrating mold-changing automation into an existing injection molding machine line requires careful planning and coordination among multiple stakeholders, including engineering, maintenance, production, and safety teams. First, the plant needs to assess the available floor space and clearance height to accommodate the robotic arms, linear guides, or cranes required for automated mold handling. Engineers then review mold inventory and classify molds based on weight, size, and compatibility with quick-change platens or magnetic couplings. Standardized mold bases are crucial for simplifying automation programming and minimizing assembly issues. During installation, maintenance personnel collaborate with automation integrators to establish hydraulic or electrical connections, define safety zones, and configure the machine’s Programmable Logic Controller (PLC) to coordinate mold docking procedures. Before a full rollout, a trial run is conducted on a test mold to verify that alignment accuracy, clamping force, and torque values ​​meet OEM specifications.
Reduce labor with automated mold change technology
Mold change automation represents a transformative shift in injection molding machine operations, reducing manual labor, improving safety, and maximizing machine uptime. With rapid mold change systems and injection molding robot assistance, manufacturers have significantly reduced mold change time, minimized the risk of injury, and ensured consistent tool calibration, resulting in super
